Stack Overview

The following ROS2 packages make up the Staubli Driver ROS2 stack:

  • staubli_driver_ros2: Meta-package containing the documentation.

  • staubli_robot_driver: The main package, containing the Hardware Interface and the VAL3 code that runs on the robot controller.

  • staubli_robot_description: URDF and XACRO files for Staubli robots.

  • staubli_moveit_config: MoveIt2 configuration package for Staubli robots.

  • staubli_bringup: Launch files to start the driver and related nodes.

../_images/staubli_driver_ros2_overview.png

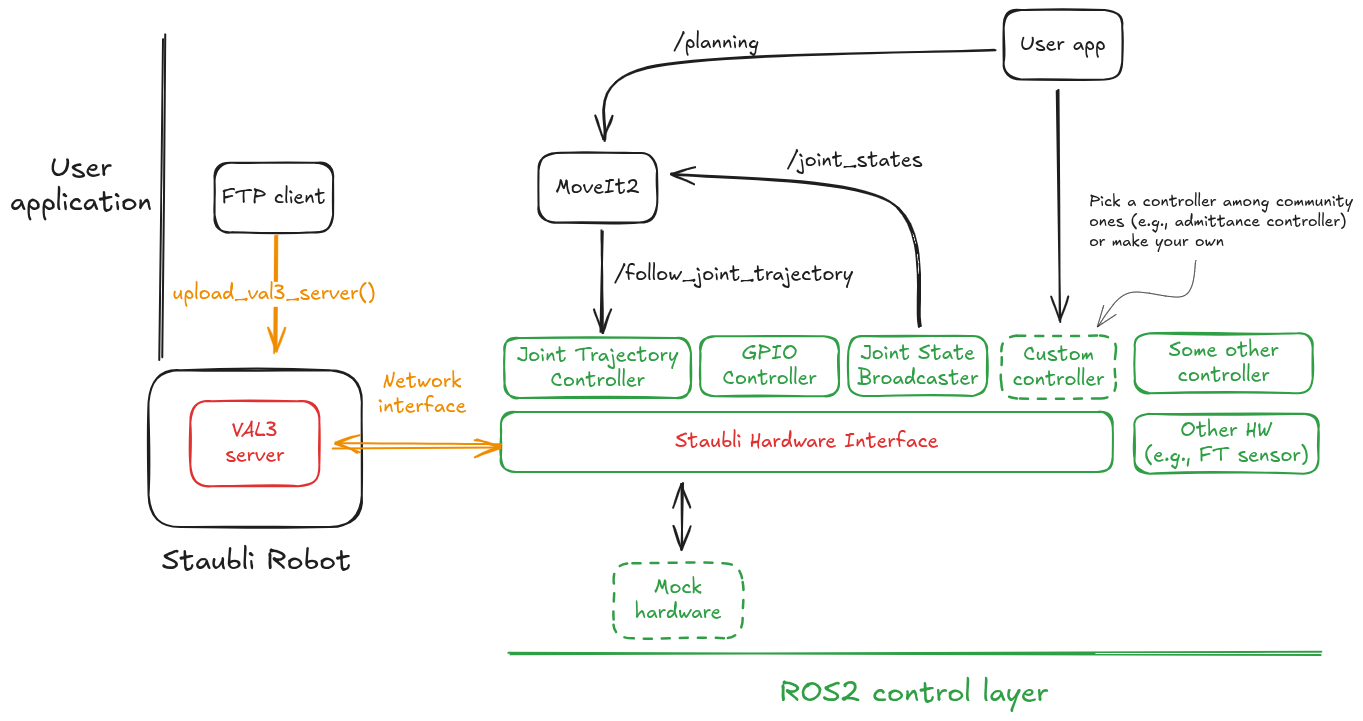

Fig. 1 The Staubli Driver ROS2 stack provides a VAL3 robot-side server and an ROS2 client in the form of a Hardware Interface.

Staubli Hardware Interface

State interfaces

Joint state interfaces follow the form <robot_prefix><joint_name>/<interface_name>. The following joint state interfaces are provided:

  • position

  • velocity

  • effort (estimated from current; not directly measured).

Supervision state interfaces use the form <robot_prefix>supervision/state. The following supervision states are provided:

  • operation_mode: integer code representing the current operation mode of the robot (manual, automatic, etc.).

  • operation_mode_status: integer code representing the current status. Meaning varies depending on operation_mode; see the VAL3 documentation for details.

  • safety_status: integer code representing the current safety status (E-stop, SS1, SS2, etc.).

  • control_sequence_delay: the total delay in the control loop (ping-pong), expressed in number of cycles.

  • brakes_released: boolean indicating whether the robot brakes are released (i.e., power ON).

  • motion_possible: boolean indicating whether motion is currently possible (no E-stop, no safety violation, brakes released, etc.).

  • in_motion: boolean indicating whether the robot is currently moving.

  • in_error: boolean indicating whether the robot is in an error state.

  • estop_pressed: boolean indicating whether the emergency stop is currently pressed (see also safety_status).

  • wait_for_ack: boolean indicating whether the robot is currently waiting for an acknowledgment from the operator (i.e., Safety Restart).

GPIO state interfaces use the form <robot_prefix>gpio/<gpio_name>. The following GPIO states are provided:

  • digital_input_i: where i is the input number (up to 16).

  • analog_input_i: where i is the input number (up to 4).

Control interfaces

Joint control interfaces follow the form <robot_prefix><joint_name>/<interface_name>. The following joint control interfaces are provided:

  • position

  • velocity (not implemented yet).

GPIO control interfaces use the form <robot_prefix>gpio/<gpio_name>. The following GPIO controls are provided:

  • digital_output_i: where i is the output number (up to 16).

  • analog_output_i: where i is the output number (up to 4).

Parameters

The driver can be configured using parameters passed through the XACRO macro (see staubli_robot_description/r2c/staubli.r2c.xacro).

The following parameters can be set for each robot instance:

  • robot_ip (string): IP address of the robot controller.

  • robot_prefix (string): Prefix to add to all link, joints, and interfaces of this robot.

  • num_digital_inputs (int, default: 16): Number of digital inputs available on the robot.

  • num_digital_outputs (int, default: 16): Number of digital outputs available on the robot.

  • num_analog_inputs (int, default: 2): Number of analog inputs available on the robot.

  • num_analog_outputs (int, default: 2): Number of analog outputs available on the robot.

Additionally, the following parameters can be set to configure the communication ports:

  • control_port (int, default: 11000): Port number for the robot control interface (robot side).

  • diagnostic_port (int, default: 11001): Port number for the robot diagnostic interface (robot side).

  • local_control_port (int, default: 11000): Port number for the local control interface (ROS2-side).

  • local_diagnostic_port (int, default: 11001): Port number for the local diagnostic interface (ROS2-side).

FTP utility scripts

The package provides utility scripts to facilitate file transfers to and from the robot controller using FTP. These scripts can be found in the staubli_driver_ros2/scripts directory. Currently, the following scripts are available:

  • upload_val3_server.py: Uploads the VAL3 server program to the robot controller.

  • remove_val3_server.py: Removes the VAL3 server program from the robot controller.

  • download_logs.py: Downloads log files from the robot controller.

  • show_logs.py: Displays log files from the robot controller in the console.
